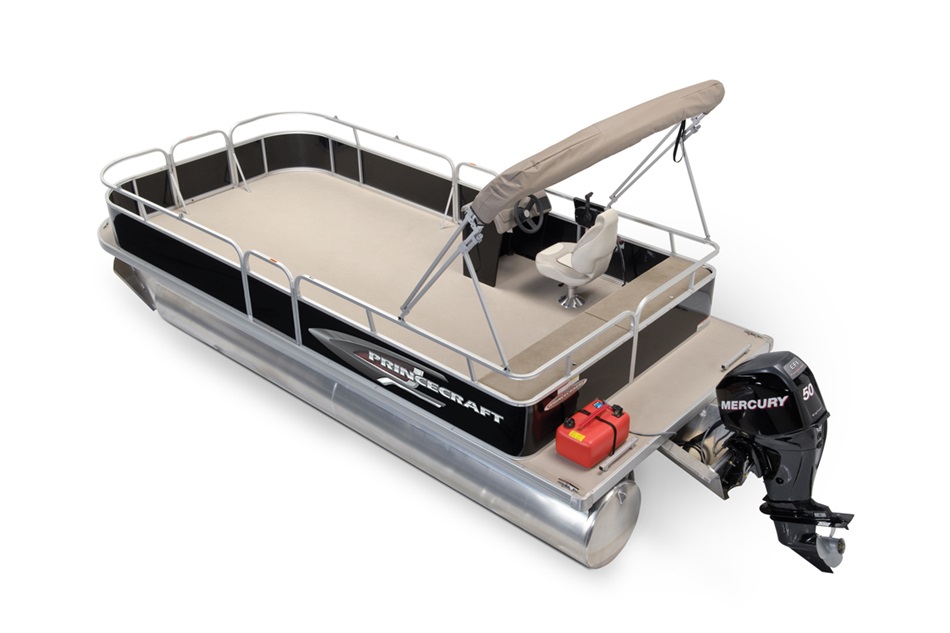

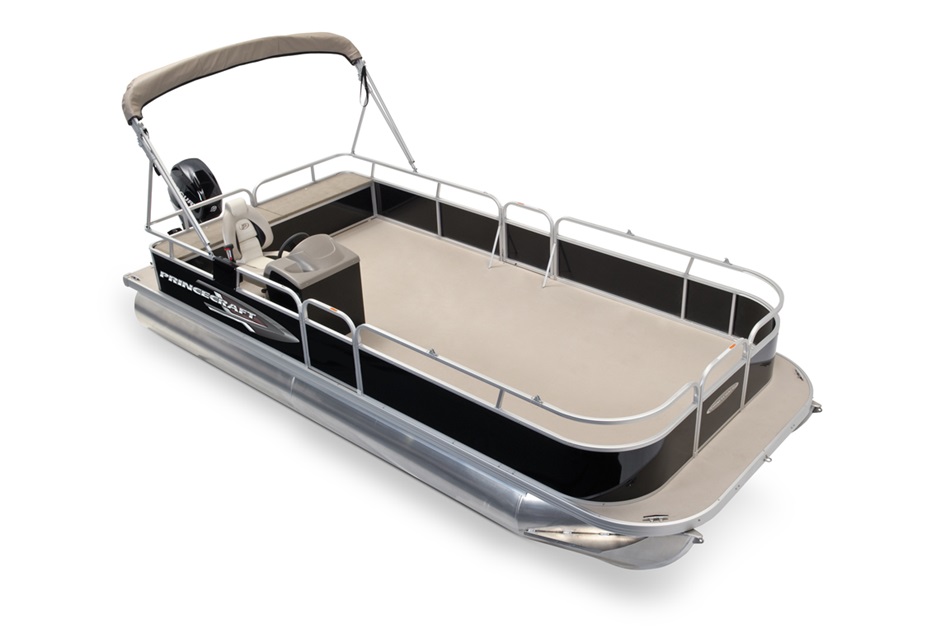

VOYAGEUR 21

Back to basics- this is what is behind this Voyageur 21’-7’’ pontoon: integrated console, large passenger bench, and TONS of open storage. Accommodating 10 people with an engine ranging from 25 up to 60 HP, the Voyageur offers durability, impressive load capacity and will simplify all the projects you’ve ever dreamed of.

GENERAL SPECIFICATIONS

  • Overall length : 6.6 m (21'-7")
  • Deck length : 6.1 m (20'-1'')
  • Beam : 2.6 m (8'-5'')
  • Pontoon length : 6.2 m (20'-4'')
  • Pontoon diameter : 0.64 m (25")
  • Pontoon aluminum thickness : 2.0 mm (.080")
  • Approximate weight : 615 kg (1356 lb.)
  • Maximum HP capacity : 45 kW (60 HP)
  • Maximum weight capacity : 843 kg (1859 lb.)
  • Maximum weight person capacity : 635 kg (1400 lb.)
  • Maximum person capacity : 10
  • Maximum HP capacity : 45 kW (60 HP)
  • Maximum weight cap.acity : 843 kg (1859 lb.)
  • Maximum weight person capacity : 635 kg (1400 lb.)
  • Maximum person capacity : 10
  • Built-in : Portable - 22 L (6 U.S. gal.)

CONSTRUCTION FEATURES

  • 5052-H36 marine grade aluminum alloy
  • NMMA & Transport Canada certified
  • 2 ½" heavy-duty extruded Z-aluminum cross channels
  • 1 1/4" anodized aluminum rails
  • Sealed pontoon bulkheads with top mounted air plug (25")
  • V-shaped aluminum engine pod
  • Pressure-treated wood deck covered with marine grade vinyl
  • Extruded aluminum full-length pontoon keels
  • Extruded aluminum full-length pontoon skirting
  • Stern molded corners
  • Walk-thru bow gate with lift and lock hinges
  • Starboard side gate with lift and lock hinges
  • Port side gate with lift and lock hinges
  • Stainless steel bow eye
  • Lifting eyes
  • 4- 6" chromed deck cleats
  • Aluminum helm console
  • Plastic molded dash panel
  • Large rear bench seat with under seat storage
  • Factory installed canvas camper enclosure & mooring cover snap fasteners
  • Stern boarding ladder
  • Battery box

DEALER INSTALLED OPTIONS

  • Smoked windscreen
  • Trailer cover
  • Mooring cover
  • Buggy bimini top
  • Full camper enclosure
  • Black with vinyl floor covering
  • Mercury 25 ELPT 4S
  • Mercury 30 ELPT 4S
  • Mercury 40 ELPT CT 4S
  • Mercury 50 ELPT CT 4S
  • Mercury 60 ELPT CT 4S
  • 6922047-GALVANIZED TANDEM AXLE SCISSOR-LIFT STYLE TRAILER WITH BRAKES (FOR 2 LOGS ONLY)
  • Sealed hubs, swivel tongue jack and 2" ball coupler
  • Drum brakes (on all axles)
  • Factory balanced wheels
  • Tire size : 5.30 X 12'' C
  • Weight : 293 kg (645 lb.)
  • 1607 kg (3535 lb.) carrying capacity
  • 6928047-GALVANIZED TANDEM AXLE BUNK SUPPORT STYLE TRAILER WITH BRAKES
  • Carpeted fixed bunks
  • Sealed hubs, swivel tongue jack and 2" ball coupler
  • Drum brakes (on all axles)
  • Factory-balanced wheels
  • LED lights
  • Tire size : 20.5 x 8 x 10'' C
  • Weight : 434 kg (955 lb.)
  • 1576 kg (3467 lb.) carrying capacity
  • Deluxe transom tie downs…/pair
  • Galvanized spare wheel 20.5 x 8.0 x 10" C and bracket
  • Galvanized spare wheel 5.30 x 12" C with 5 lugs and bracket
