UNGAVA

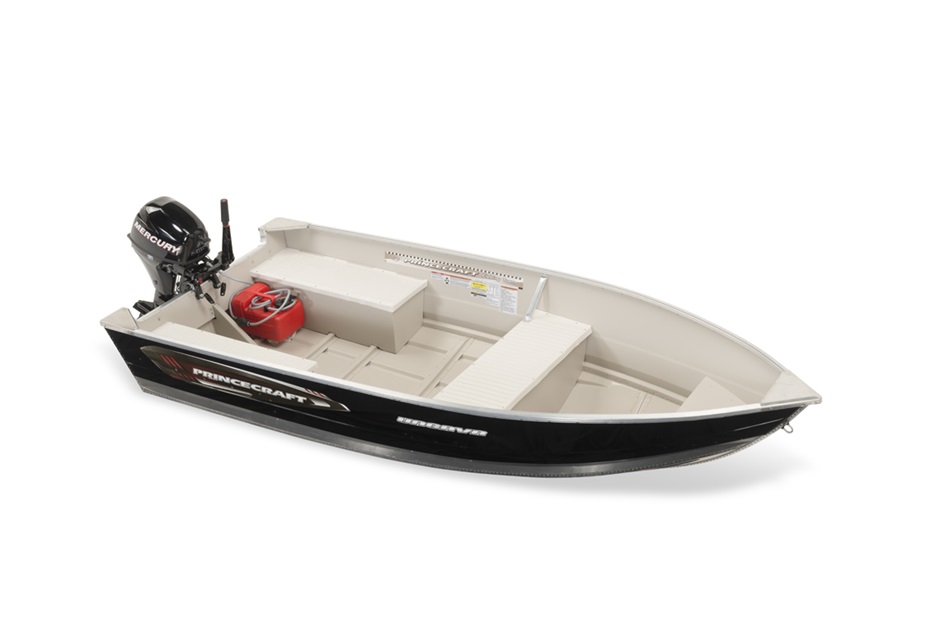

This 12’ aluminum utility boat can handle an outboard engine ranging from 5 to 15 HP and hold up to 3 people (4 in the USA). It is lightweight and compact and built to let you enjoy years of satisfaction.

GENERAL SPECIFICATIONS

  • Center Line : 3.7 m (12'-0")
  • Beam : 1.5 m (60")
  • Chine Width : 1.3 m (51")
  • Maximum Depth : 0.6 m (25")
  • Approximate Draft : 0.4 m (13")
  • Transom Height : 0.4 m (15")
  • Approximate Weight : 78 kg (171 lb.)
  • Dead Rise : 2 degrees
  • Maximum HP Capacity : 12 kW (15 HP)
  • Maximum Weight Capacity : 317 kg (699 lb.)
  • Maximum Weight Person Capacity : 225 kg (496 lb.)
  • Maximum Person Capacity : 3
  • Max. HP cap. : 12 kW (15 HP)
  • Max. weight cap. : 318 kg (700 lb.)
  • Maximum weight person capacity : 211 kg (466 lb.)
  • Maximum person capacity : 4
  • Bottom : 1.5 mm (.061")
  • Side : 1.3 mm (.051")
  • Type : Portable - 22 L (6 U.S. gal.)

HULL AND DECK FEATURES

  • 5052-H36 marine grade aluminum alloy
  • NMMA & Transport Canada certified
  • High gloss exterior High Solids urethane paint and decal package
  • Non-skid anti-glare interior paint finish
  • Semi-V hull with square chine
  • Aluminum clad transom
  • Twin plating at the chine
  • Heavy-duty tubular seat to gunnel braces
  • Bow eye and stern handles
  • Parallel seats at stern
  • Bulkhead center seat
  • Durable ribbed polyethylene seat covering
  • Deployable ladder (in pouch)
  • Seat Package: folding seat, detachable swivel plate with auto-lock handle and extrusion
  • Sun top - 66" wide (taupe)
  • Black with vinyl floor covering
  • Mercury 5 M 4S
  • Mercury 6 M 4S
  • Mercury 8 M 4S
  • Mercury 9.9 M 4S
  • Mercury 15 M 4S

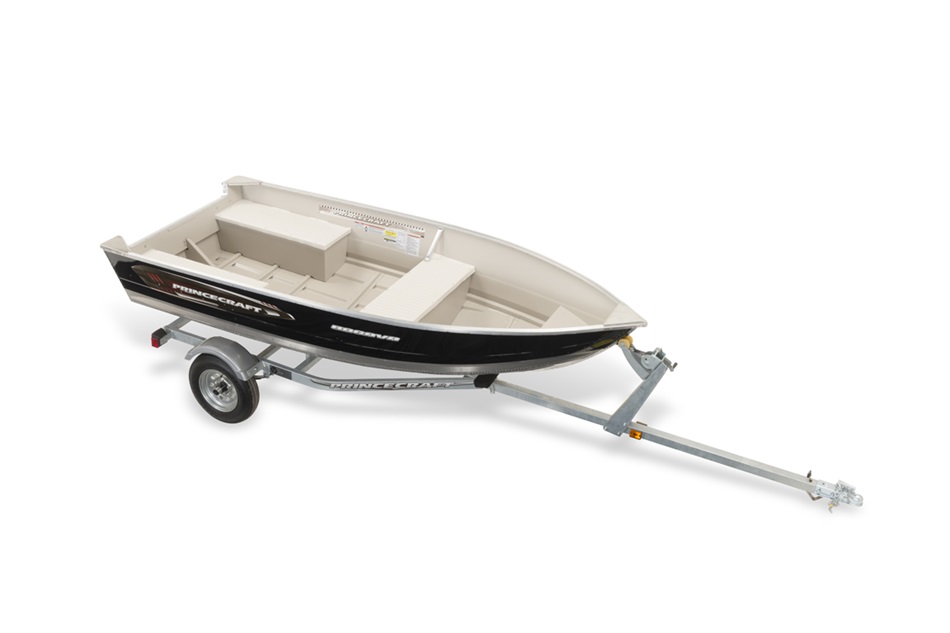

  • Galvanized bunk style trailer
  • Single axle
  • Carpeted fixed bunks
  • Built-in steps & composite fenders
  • Sealed hubs
  • 2" ball coupler
  • Factory balanced steel wheel
  • 860 kg (1 892 lb.) carrying capacity
  • Tire size : 5.30 x 12" C
  • Weight : 90 kg (198 lb.)
  • Deluxe transom tie downs…/pair
  • Transom saver motor support bar
  • Galvanized spare wheel 5.30 x 12" C with 5 lugs and bracket
  • Galvanized
