NANOOK DLX WS

16’-6’’ of pure fishing features! With up to 4 of your friends (5 in the USA), enjoy your favorite sport and everything this boat has to offer: ergonomic design, bow and aft raised casting platforms, lockable 6-rod storage, livewell, twin consoles, and a no-Feedback steering system. Why spend more? This boat has it all to make it the best fishing adventure. This boat can handle an outboard engine ranging from 75 to 115 HP.

GENERAL SPECIFICATIONS

  • Center Line : 5,0 m (16'-6")
  • Beam : 2.2 m (88")
  • Chine Width : 1.8 m (71")
  • Maximum Depth : 0.8 m (33")
  • Approximate Draft : 0.7 m (28")
  • Transom Height : 0.5 m (20")
  • Approximate Weight : 474 kg (1044 lb.)
  • Dead Rise : 13 degrees
  • Maximum HP Capacity : 86 kW (115 HP)
  • Maximum Weight Capacity : 600 kg (1323 lb.)
  • Maximum Weight Person Capacity : 300 kg (661 lb.)
  • Maximum Person Capacity : 4
  • Max. HP cap. : 86 kW (115 HP)
  • Max. weight cap. : 600 kg (1323 lb.)
  • Maximum weight person capacity : 318 kg (700 lb.)
  • Maximum person capacity : 5
  • Bottom : 2.2 mm (.087")
  • Side : 1.8 mm (.072")
  • Built-in : 72 L (19 U.S. gal.)

HULL AND DECK FEATURES

  • 5052-H36 marine grade aluminum alloy
  • NMMA & Transport Canada certified
  • High gloss exterior High Solids urethane paint and decal package
  • Reverse chine hull design
  • Aluminum clad transom
  • Deep self-draining splashwell
  • Twin plating from bow to mid-ship
  • Rigging tube under flooring (console to bow)
  • Rigging tube under flooring (stern to console)
  • Stainless steel bow and stern eyes
  • 4 nylon cleats
  • BOW RAISED CASTING PLATFORM
  • Storage under casting platform
  • Deep cycle battery storage compartment
  • Seat mount floor base
  • Storage compartment
  • Large lockable rod organizer with tubes for 6 rods
  • AFT RAISED CASTING PLATFORM
  • Battery storage compartment
  • Electric-filled aerated livewell
  • Seat mount floor base
  • 7 foot rod storage without support
  • 12V or 24V bow trolling motor plug & receptacle with wiring harness
  • Bow mounting trolling motor pad
  • STERN LIVEWELL ( (34", 61 L/16 U.S. GAL.)
  • Electric-filled aerated [ SportFlo ]
  • Overflow
  • Anti-spill cover
  • Protection filter on the filling pump
  • 6 floor seat bases
  • 2 folding seats with no-pinch hinges
  • Twin consoles with steering system
  • Walk-thru tinted curved tempered glass windshield with door
  • Deluxe dash panel with switches and indicator lights
  • No-FeedBack steering system
  • Storage under consoles
  • Tachometer
  • Speedometer
  • Fuel gauge
  • PrinceTrak: extrusion allowing onboard tool attachment
  • Electric bilge pump
  • Navigation lights
  • Canvas top snap fasteners
  • Interior light(s)
  • 2 cup holders
  • 3 battery holders
  • Emergency reboarding ladder
  • Transducer(s) mounting plate
  • Pressure-treated wood floor covered with marine grade vinyl

FACTORY INSTALLED OPTIONS

  • Princecraft special decal package...upgrade exchange
  • Fishing Package: addition of Tournament Fishing Team graphics, fish ruler, deluxe seat exchange, flat seat base(s) on fishing platform(s), quick rod storage, nets addition under console(s) and on bow platform
  • Tilt steering with slider for captain's chair... upgrade exchange
  • SeaStar hydraulic steering system with tilt wheel and slider for captain's chair... upgrade exchange (included with 150 HP engine and up)
  • Co-Pilot system for Minn Kota PD V2 trolling motor
  • Deluxe folding seats…upgrade exchange (replacing standard seats)
  • 160-watt AM/FM/Bluetooth Jensen Stereo with integrated auxiliary input (1/8") in console
  • 200-watt AM/FM/CD/Bluetooth Clarion Stereo compatible SAT with integrated USB plug and auxiliary input (1/8") in console
  • Active trim: automatic trim system
  • MotorGuide W55 wireless trolling motor (12 volts, 54", 55 lb. peak thrust)
  • MotorGuide W75 wireless trolling motor (24 volts, 54", 75 lb. peak thrust)
  • MotorGuide Xi5 wireless trolling motor (24 volts, 54'', 80 lb. peak thrust)
  • Minn Kota 55 PD V2 trolling motor (12 volts, 54", 55 lb. peak thrust) with bracket
  • Minn Kota 55 PD V2 trolling motor (12 volts, 54", 55 lb. peak thrust) with iPilot and bracket
  • Minn Kota 70 PD V2 trolling motor (24 volts, 54", 70 lb. peak thrust) with bracket
  • Minn Kota 70 PD V2 trolling motor (24 volts, 54", 70 lb. peak thrust) with iPilot and bracket
  • Onboard charger for 1 - 12V battery (ProSport 6)
  • Onboard charger for 2 - 12V batteries (ProSport 20)
  • Stern telescopic boarding ladder
  • Seat Package: folding seat, post (11''), and seat mount with auto-lock handle
  • Seat Package (Deluxe): folding seat, post (11''), and seat mount with auto-lock handle
  • Bicycle Seat Package: bicycle seat, adjustable post, and seat mount with auto-lock handle
  • Aft flip seats and 2 cup holders
  • Adjustable downrigger supports (Red, Black or Gray)
  • "PrinceTrak" sliding installation plate
  • "PrinceTrak" rod storage support for 3 rods (installation plate included)
  • "PrinceTrak" cup holder (installation plate included)
  • "PrinceTrak" rod holder (installation plate included)
  • "PrinceTrak" bait box (installation plate included)
  • Sonar Lowrance Hook-3x
  • Sonar/ GPS Lowrance Hook-7 (the bathymetric depth maps are not included)
  • Sonar/ GPS Lowrance Elite-7 (the bathymetric depth maps are not included)
  • Sonar/ GPS Lowrance HDS-7 (the bathymetric depth maps are not included)
  • Sonar Hummibird PiranhaMAX 4
  • Sonar/ GPS Humminbird Helix 5 (the bathymetric depth maps are not included)
  • Sonar/ GPS Humminbird Helix 7 (the bathymetric depth maps are not included)
  • Raymarine multifunction touchscreen A78 DownVision/ GPS
  • Raymarine multifunction touchscreen A98 DownVision/ GPS
  • Trailer cover (black)
  • Sun top - 76" wide (taupe)
  • Complete stand-up high top with tonneau cover and curtains connected to windshield
  • Complete stand-up high top with tonneau cover, curtains connected to windshield and back extension
  • Livewell minnow bucket
  • Battery switch: allowing the onboard power shut down
  • Red with vinyl floor covering
  • Black with vinyl floor covering
  • Magnetic Gray with vinyl floor covering
  • Mercury 75 ELPT 4S
  • Mercury 90 ELPT 4S
  • Mercury 115 ELPT 4S
  • Mercury 115 ELPT PRO XS 4S

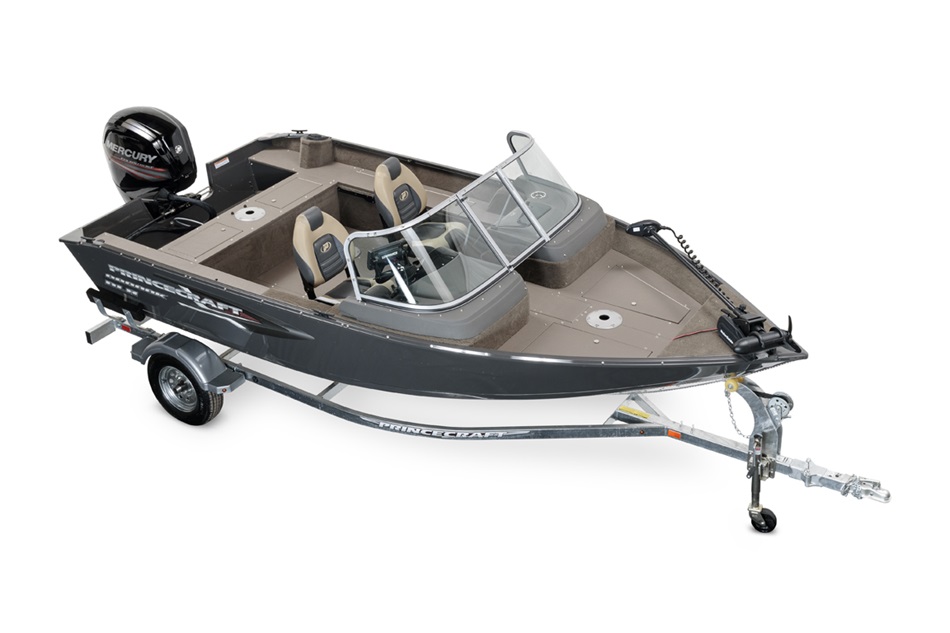

  • Standard galvanized bunk style trailer
  • Single axle with swing tongue
  • Carpeted fixed bunks and load guides
  • Built-in steps and composite fenders
  • Sealed hubs and swivel tongue jack
  • 2" ball coupler
  • LED lights
  • Factory balanced steel wheel
  • 1 086 kg (2 390 lb.) carrying capacity
  • Radial tire size : ST175/80R13 C
  • Weight: 150 kg (330 lb.)
  • Heavy-duty galvanized trailer with swivel tongue jack, swing tongue, and 13'' radial tires... upgrade exchange
  • Deluxe transom tie downs…/pair
  • Transom saver motor support bar
  • ST175/80R13 C galvanized spare wheel with 5 lugs and bracket
  • Galvanized
