BRIOe 15

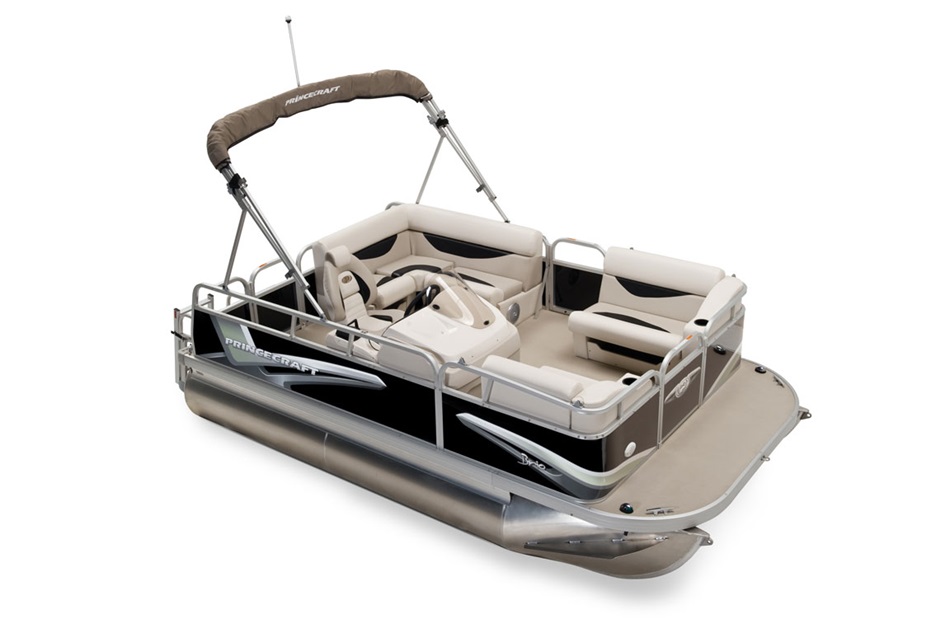

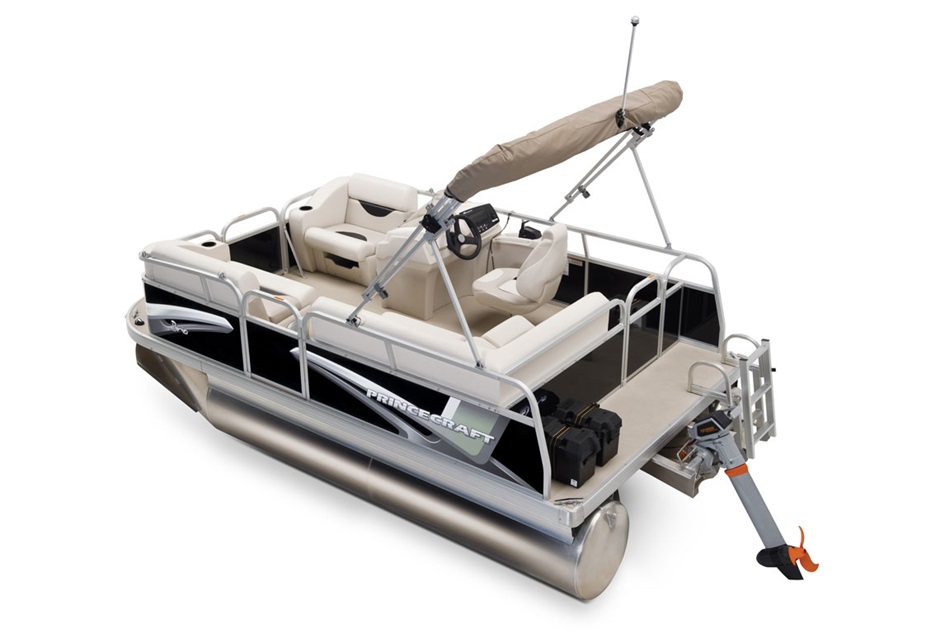

This 15’-1’’ electric pontoon was built around the Torqeedo electric engine that we use to power it. Accommodating up to 4 people (6 in the USA) and a Torqeedo 2.0R or 4.0R engine, the Brio is smaller than regular pontoons, lighter and designed to accommodate the required batteries. It’s the ultimate pontoon for small lakes or lakes that do not allow gas powered engines. Who knew being environmentally friendly could be this much fun?

GENERAL SPECIFICATIONS

  • Overall length : 4.6 m (15’-1”)
  • Deck length : 4.3 m (14'-1")
  • Beam : 2.3 m (7'-6")
  • Pontoon length : 4.3 m (14’-3”)
  • Pontoon diameter : 0.58 m (23”)
  • Pontoon aluminum thickness : 2.0 mm (.080")
  • Approximate weight : 496 kg (1094 lb.)
  • Maximum propulsive power : 48V / Cruise 4.0R (equivalent 9.9 HP)
  • Maximum weight capacity : 552 kg (1217 lb.)
  • Maximum weight person capacity : 382 kg (842 lb.)
  • Maximum person capacity : 4
  • Maximum propulsive power : 48V / Cruise 4.0R (equivalent 9.9 HP)
  • Maximum weight cap.acity : 552 kg (1217 lb.)
  • Maximum weight person capacity : 382 kg (842 lb.)
  • Maximum person capacity : 6

CONSTRUCTION FEATURES

  • 5052-H36 marine grade aluminum alloy
  • NMMA & Transport Canada certified
  • 2 ½" heavy-duty extruded Z-aluminum cross channels
  • 1 1/4" anodized aluminum rails
  • Sealed pontoon bulkheads with top mounted air plug (23")
  • Electric engine pod
  • Pressure-treated wood deck covered with marine grade carpet
  • Extruded aluminum full-length pontoon keels
  • Extruded aluminum full-length pontoon skirting
  • Stern molded corners
  • Walk-thru bow gate with lift and lock hinges
  • Walk-thru rear gate with lift and lock hinges
  • Port side gate with lift and lock hinges
  • Rear swim platform
  • Stainless steel bow eye
  • Lifting eyes
  • 4- 6" chromed deck cleats
  • Rotomolded helm console with acrylic top
  • Molded dash panel with black inserts and lighted switches
  • 160-watt AM/FM/Bluetooth Jensen Stereo with integrated auxiliary input (1/8") in console
  • 4 waterproof speakers ( 6 ½" )
  • Electric horn
  • 12V outlet
  • Quick release smoked windscreen
  • Remote throttle with integrated display (indicating battery voltage, battery charge, speed, remaining range at current speed, and input power consumption)
  • Voltmeter
  • Plush and heavy weight upholstery
  • Driver swivel folding seat
  • Storage under all lounges
  • Color coordinated or taupe bimini top
  • Bimini top latches and traveling struts
  • Factory installed canvas camper enclosure & mooring cover snap fasteners
  • Onboard battery chargers and boxes
  • Stern boarding ladder
  • Cup holders
  • Navigation lights
  • Interior lighting
  • Transducer mounting bracket

FACTORY INSTALLED OPTIONS

  • Mood Package: stern snack table and door on the side of the console
  • Anti-skid vinyl floor covering...upgrade exchange
  • Power trim and tilt system (for TORQEEDO motor)
  • Tilt steering mechanism and slider for driver seat…upgrade exchange
  • 24V solar panel (with TORQEEDO CRUISE 2.0R only)
  • Station for additional battery bank…UE (with TORQEEDO CRUISE 2.0R only) (including upgraded charger (ProTournament 300 DUAL) for 2 - 12V batteries and 2 boxes)
  • Console door...upgrade exchange
  • Raised rail upgrade
  • Removable privacy enclosure
  • Stern beige pedestal mount removable snack table with chromed cup holders
  • Trailer cover
  • Mooring cover
  • Full camper enclosure
  • Front deck cover
  • Black with True Mica Mist "Cut Loop" Carpet (20 oz.)
  • Torqeedo Cruise 2.0R
  • Torqeedo Cruise 4.0R
  • 6912107-PAINTED SINGLE AXLE BUNK SUPPORT STYLE TRAILER
  • Carpeted fixed bunks
  • Sealed hubs, swivel tongue jack and 2" ball coupler
  • Factory-balanced wheels
  • LED lights
  • Tire size: ST175/80R13C
  • Weight: 207 kg (456 lb.)
  • 1029 kg (2264 lb.) carrying capacity
  • Deluxe transom tie downs…/pair
  • Painted spare wheel ST175/80R13C radial with 5 lugs and bracket
