TUNA 500 TT

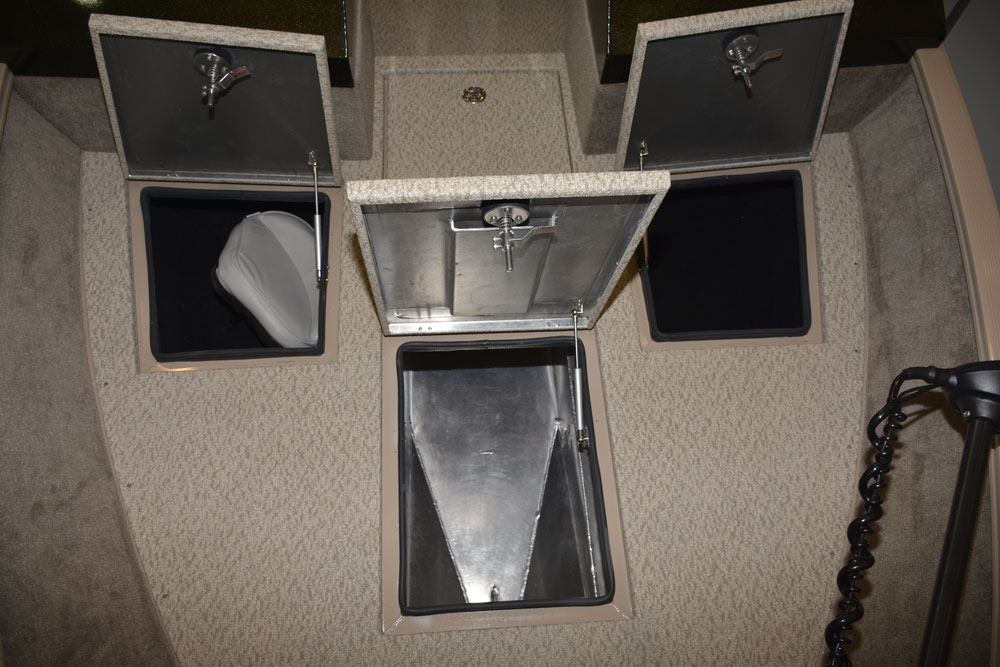

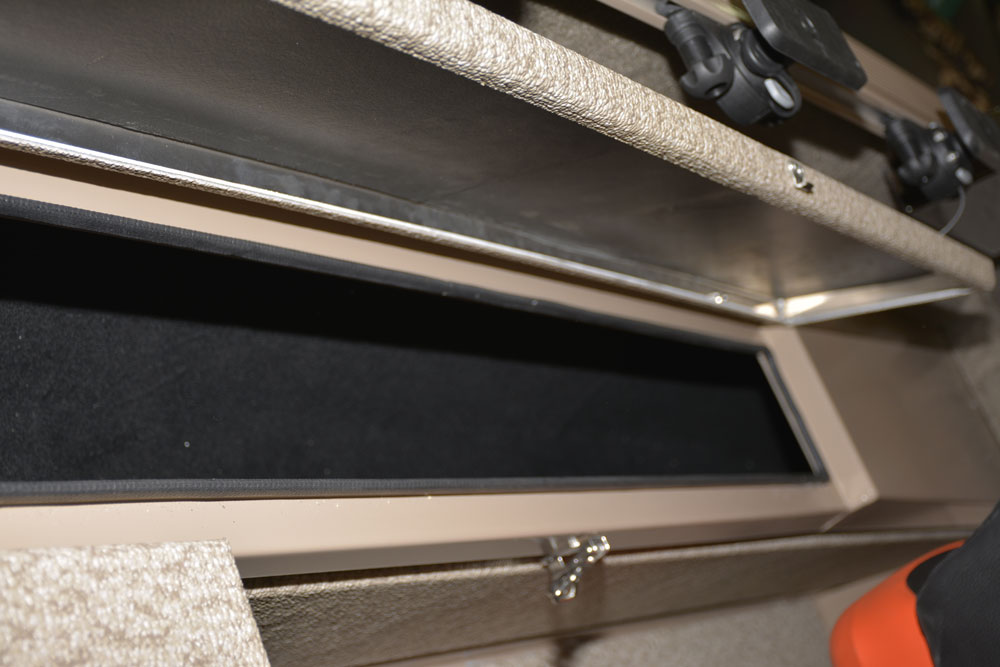

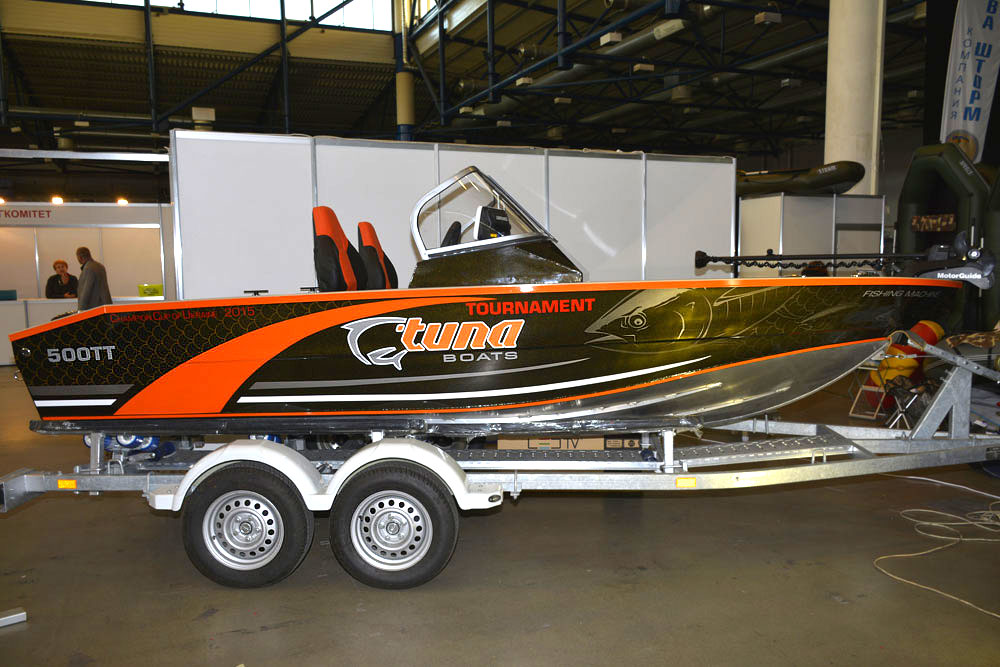

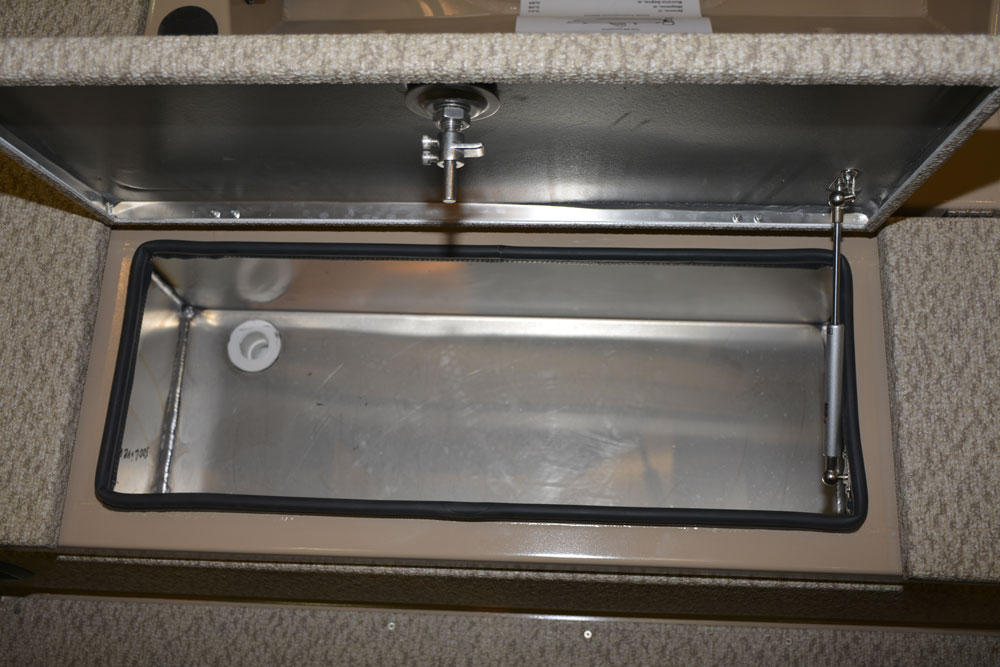

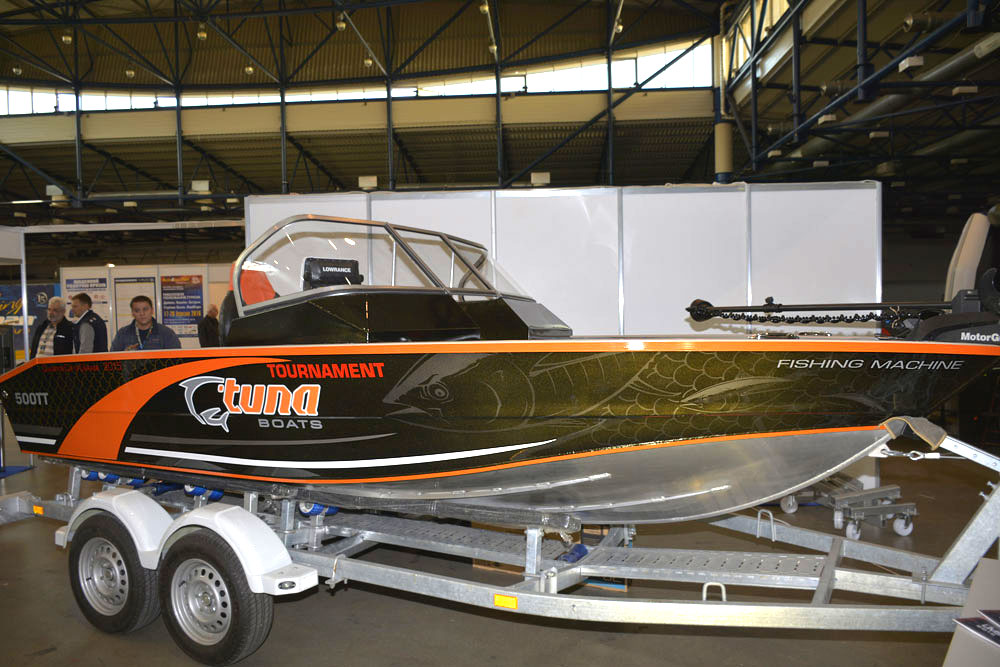

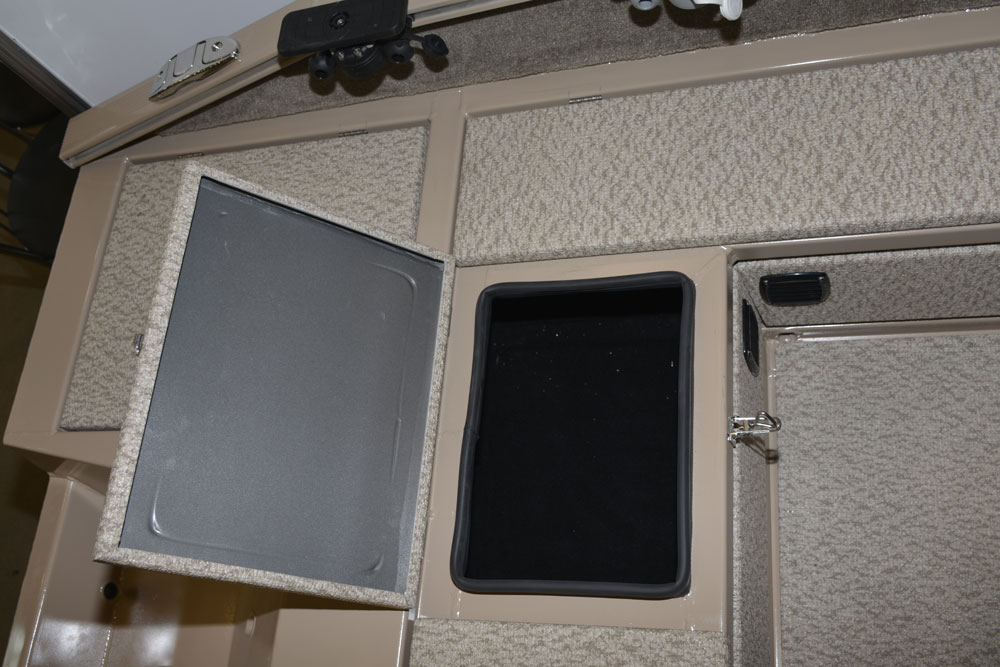

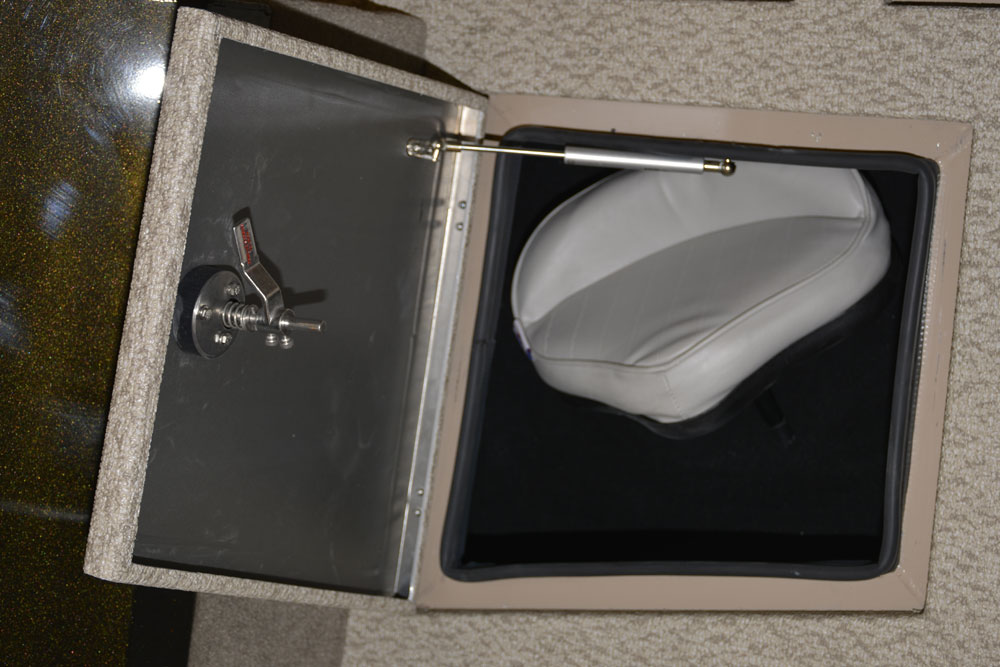

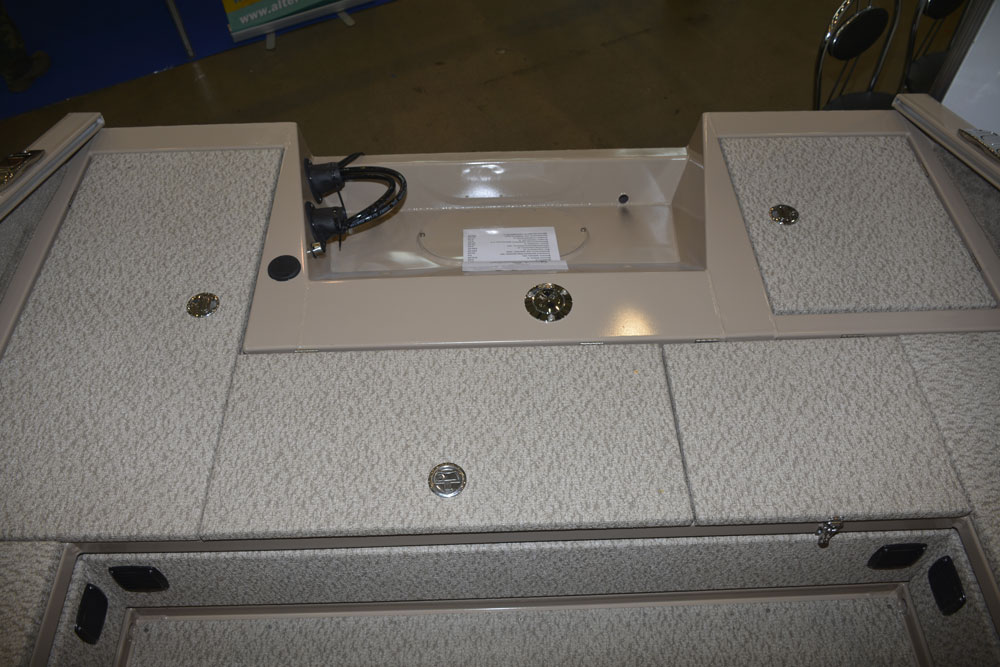

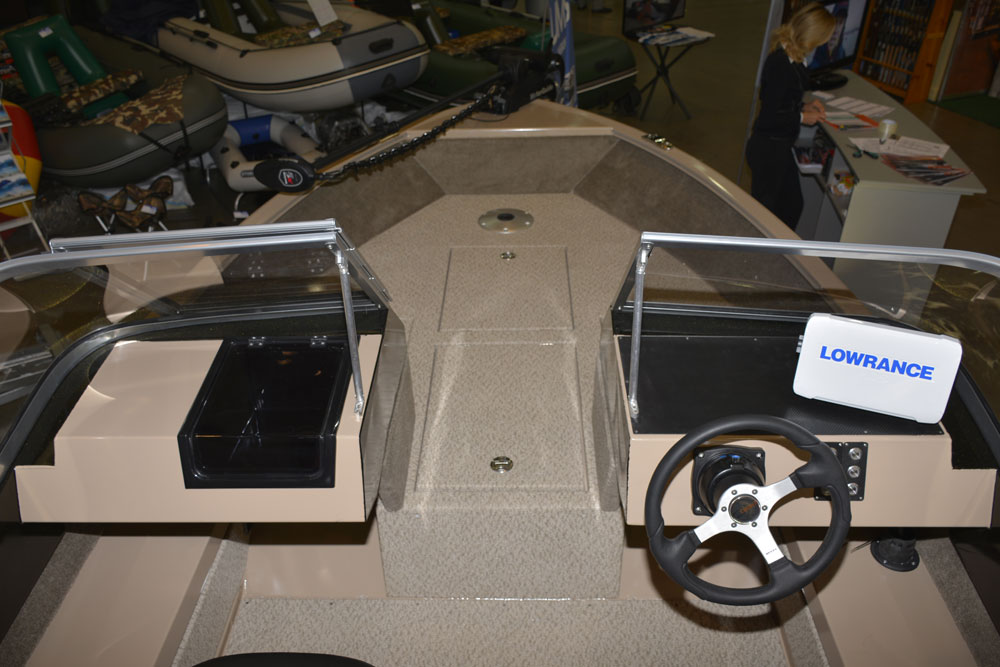

“TUNA 500 TT” is a tournament sports boat based on the hull of “TUNA 500 DC AL”. An advanced bow fish-platform with two 82 liter lockers and one central 243 liter locker. Side lockers: the left one with a 78 liter volume allows to store the rod 225 cm long, and the right one – 63 liters. The total volume of lockers on the boat – 780 liters. 60 liter integrated narrow aerator. In order to avoid the interference during fishing, a guardrail equipment is not installed. There are stainless folding bollards installed at the bow and the aft of the boat.
Carrying capacity, kg | 440 |
Passenger capacity, pers. | 6 |
Curb weight (max.), kg | 673 |
Maximum engine weight, kg | 166 |
Engine power recomm., h.p. | 90 |
Engine power, h.p. | 90 |
Fuel tank capacity, l | 77 |
Dry weight (without engine), kg | 455 |
Hull material | 5083 |
Bilge thickness, mm | 4 |
Deadrise amidships, ° | 21 |
Deadrise at transom, ° | 16 |
Transom height, m | 0,51 (L) |
Depth, m | 0,96 |
Draft, m | 0,34 |
Height overall, m | 1,48 |
Beam waterline, m | 1,75 |
Beam overall, m | 2,072 |
Maximum displacement, kg | 1197 |
Power supply | 12 V DC |
Design category | C |
Length overall, m | 5,03 |
Length of hull, m | 5,03 |
Length waterline, m | 4,25 |
